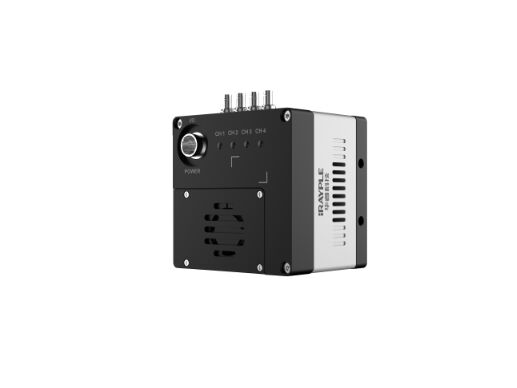

IRAYPLE A9B57CP340 Multi-Trigger/FFC-ISP Ind-Vision-Camera High-Bandwidth-Wide-Compat

MOQ:	1
Prezzo:	negotiable
imballaggio standard:	505050mm
Periodo di consegna:	3-7
Metodo di pagamento:	T/T
Capacità di approvvigionamento:	1/pezzo in magazzino

Informazioni di dettagli

Descrizione di prodotto

Informazione dettagliata

Luogo di origine

Marca

IRAYPLE

Certificazione

Numero di modello

A9B57CP340

Tempo di consegna stimato:

1-10 giorni lavorativi

Larghezza:

40 mm

Numero di uscite:

Fattore di metallo:

Nessuno

Grado di protezione:

IP65 / IP66 / IP67 / IP68

Tensione in ingresso:

24 V CC

Protocollo di comunicazione:

ModBus TCP

Corrente di uscita:

0,5 a

Descrizione di prodotto

IRAYPLE A9B57CP340 Multi-Trigger/FFC-ISP Ind-Vision-Camera High-Bandwidth-Wide-Compat

Product Overview

The IRAYPLE A9B57CP340 is a high-performance thermal imaging core module engineered for seamless integration into demanding high-speed industrial machine vision and automation systems. Featuring the ultra-high-speed CoaXPress (CXP) interface compliant with CXP-12 standard, it delivers robust theoretical bandwidth of 12.5 Gbps for real-time, low-latency transmission of high-resolution, uncompressed thermal image data.

Excellent thermal management design ensures precise temperature control, maintaining detector stability for consistent measurement accuracy. Supports versatile operational modes including software trigger, hardware trigger, and free-run with additional features like custom Regions of Interest (ROI), image mirroring, and flexible power options via Power over CoaXPress (PoCXP) or external DC supply.

Applications & Advantages

Designed for frontier industrial applications where maximum data throughput and precision are essential. Ideal for ultra-high-speed automated optical inspection (AOI) in electronics manufacturing, real-time thermal monitoring of rapid assembly processes, and scientific research requiring high-frame-rate data capture.

Ultra-high-speed data transfer via CXP-12 interface
Exceptional thermal stability for consistent performance
Flexible triggering and ROI support for optimized workflows
Precise temperature measurement and microscopic defect detection
Plug-and-play integration with CoaXPress and GenICam standards

Technical Specifications

Parameter Category	Specification Details
Model	A9B57CP340 / A9B57CP340E
Series	AX Series Large Area Scan Camera
Sensor	Gpixel GMAX0505, Global Shutter
Resolution	25 MP (5120 × 5120)
Sensor Type	1.1" CMOS
Color/Mono	Color
Frame Rate	150 fps
Pixel Size	2.5 μm × 2.5 μm
Data Interface	CoaXPress (CXP-12), 4 × 12.5 Gbps
Lens Mount	M42 × 1
Image Formats	BayerRG/GR/GB/BG 8/10/12
Bit Depth	10 bit
Dynamic Range	63 dB
Signal-to-Noise Ratio	36 dB
Gain	1 ~ 100 (Digital)
Exposure Time	15 μs ~ 5 s
Trigger Modes	Software Trigger, Hardware Trigger, Free Run
GPIO	3x opto-isolated inputs, 3x opto-isolated outputs; 1x RS232 serial port
On-board Cache	2 GB data cache
Power Supply	DC 24V via 12-pin Hirose; PoCXP supported
Power Consumption	19.4 W @24V
Dimensions	80 mm × 80 mm × 65 mm (excluding rear housing)
Weight	890 g
Operating Temperature	-30℃ ~ +50℃
Storage Temperature	-30℃ ~ +80℃
Compatibility	CoaXPress Protocol, GenICam, CE, UL, RoHS
Key Features	ROI, X/Y flip, SPC, FFC, White Balance, 2 user-defined configurations

Additional Information

We specialize in PLC, Sensors, HIM, and Transmitters with extensive experience supplying leading industrial brands.

Bently Nevada

Rosemount

Allen-Bradley

Foxboro

Our commitment to excellent working environments, perfect team collaboration, and sincere partnerships ensures mutual success for both our customers and our organization.
